Widgets

Lirum Device Info includes widgets for iOS, iPadOS, and visionOS so you can monitor key metrics at a glance.

Available Widgets

Lirum currently includes these widgets. All widgets support Small, Medium, and Large sizes unless noted otherwise.

Widget	Description	Tap Action	Refresh Interval
System Overview	Compact summary of CPU, memory, storage, and network	Opens Home tab	Every 10 minutes
CPU Usage	CPU usage percentage with recent history	Opens CPU tool	Every 10 minutes
Memory Usage	Memory usage percentage and breakdown (when space allows)	Opens Memory tool	Every 10 minutes
Network Activity	Wi-Fi and cellular upload/download activity	Opens Connection Rate tool	Every 10 minutes
Storage	Used/free storage and percentages	Opens Storage tool	Every 30 minutes
System Uptime	Time since last boot	—	Every 1 minute
Usage Alerts	Health-style alerts based on configurable thresholds (CPU, memory, storage, network, thermal, battery)	Opens Home tab	Every 2 minutes

The Usage Alerts widget also supports a Lock Screen size (accessoryRectangular), letting you see alert status directly on the Lock Screen without unlocking.

In Medium and Large sizes, the Memory Usage widget displays a segmented bar showing Active (blue), Wired (orange), Inactive (green), and Free memory. The Large size also shows Compressed memory when present.

Data Freshness

Widgets display the latest snapshot collected by Lirum. If Lirum has not been opened recently, widgets may show stale data (visually dimmed) or No Data.

Tip: open Lirum and leave it in the foreground briefly to refresh widget data.

Widget Settings

In Settings > Widgets, you can:

• Toggle Show Timestamp (shows/hides the “as of …” label on widgets).
• Configure Alerts thresholds used by the Usage Alerts widget (see Settings > Alerts for details on the six alert categories and their default thresholds).

iOS

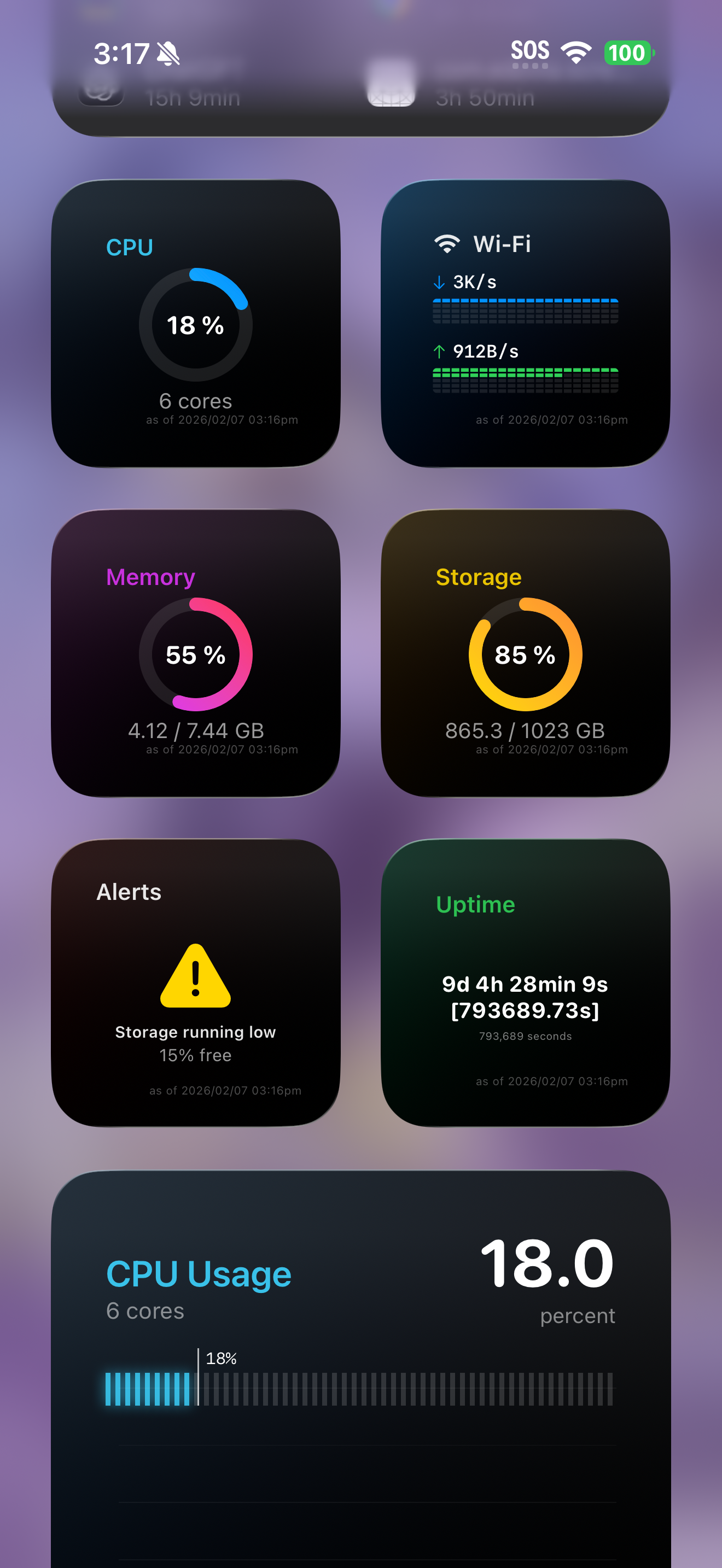

iOS: keep key metrics visible on the Home Screen.

iOS: use small widgets for a compact dashboard.

iOS: the Storage widget supports multiple sizes.

iPadOS

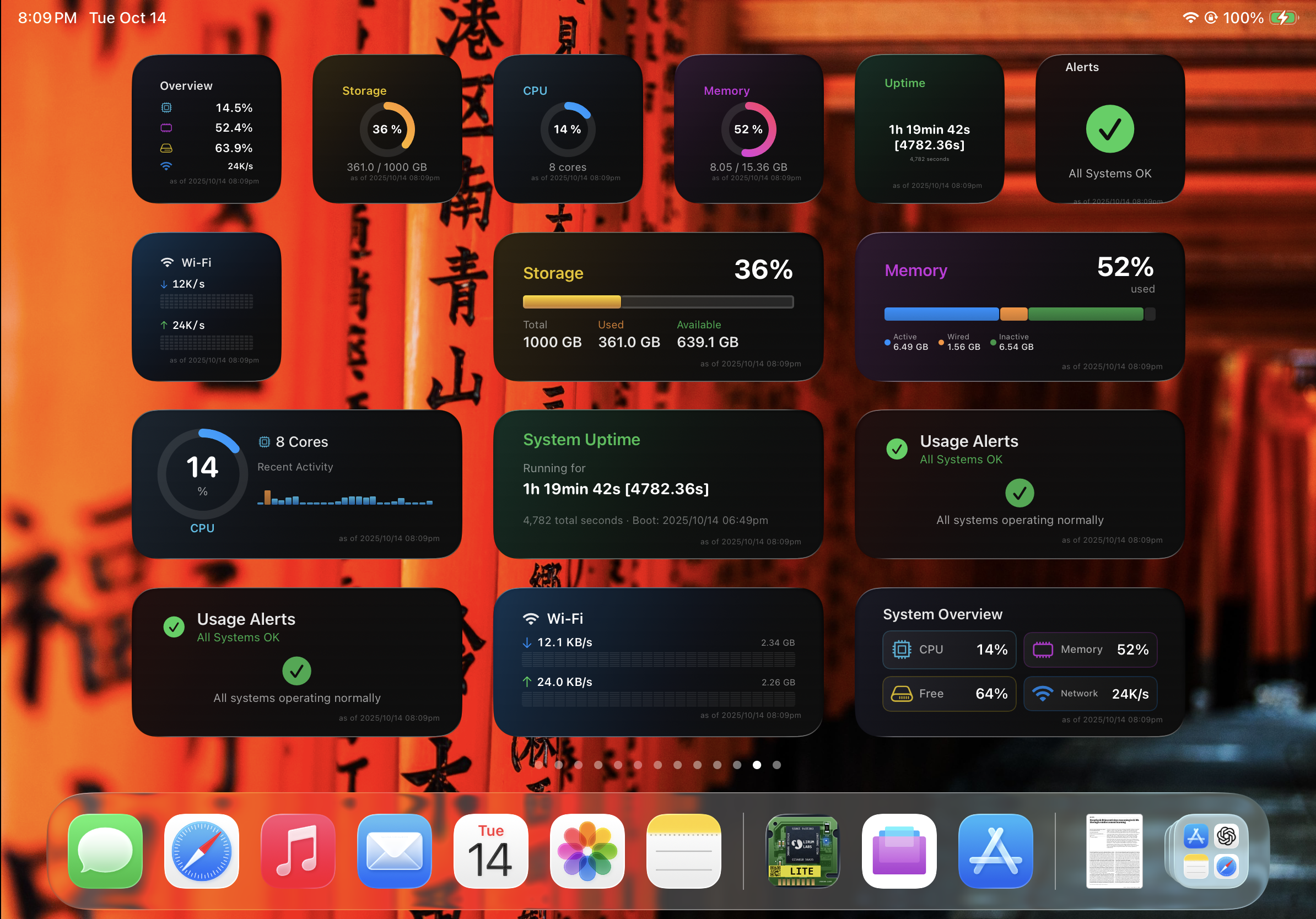

iPadOS: larger screens make it easy to keep multiple widgets visible.

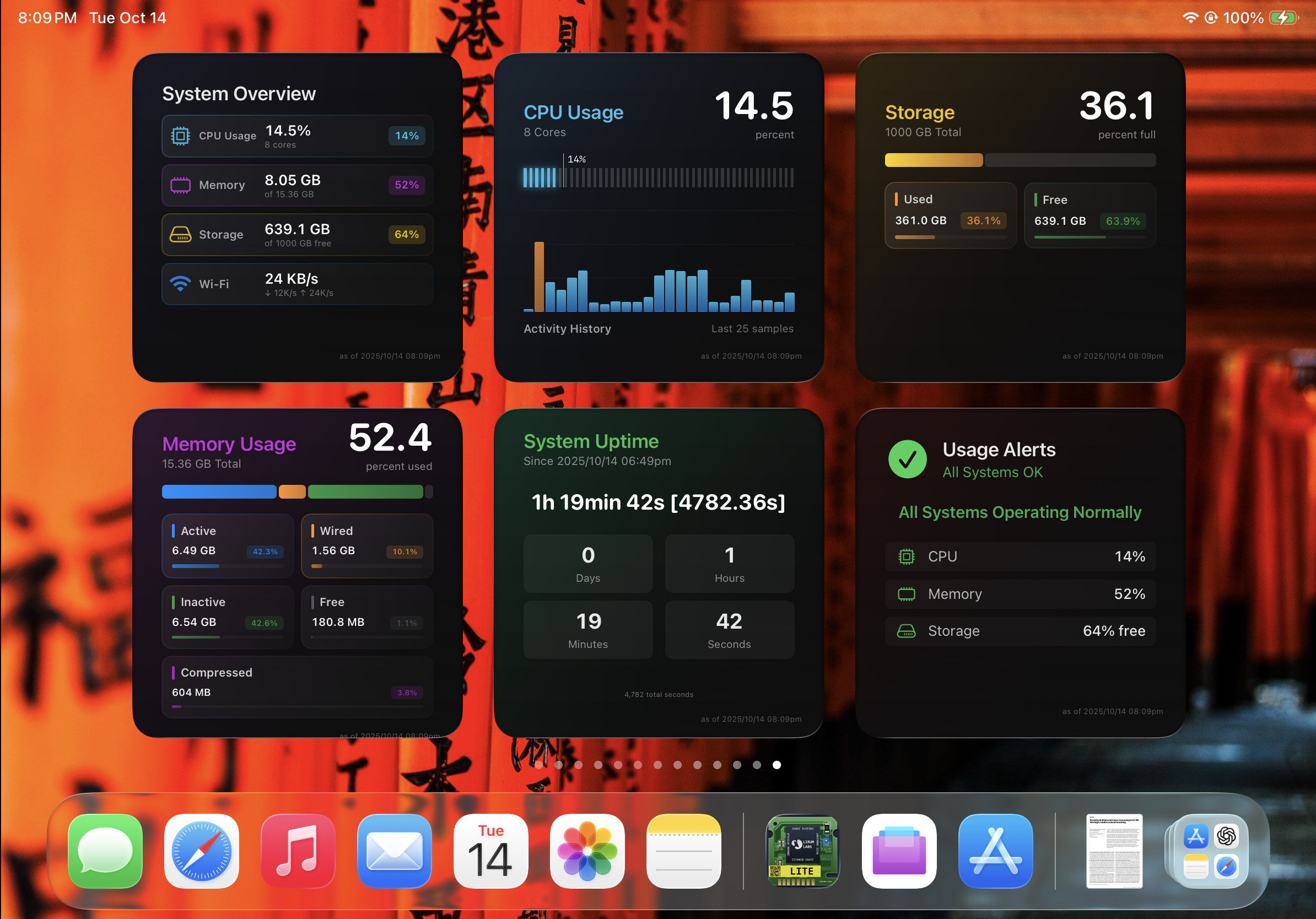

iPadOS: mix widget sizes to prioritize the metrics you care about.

visionOS

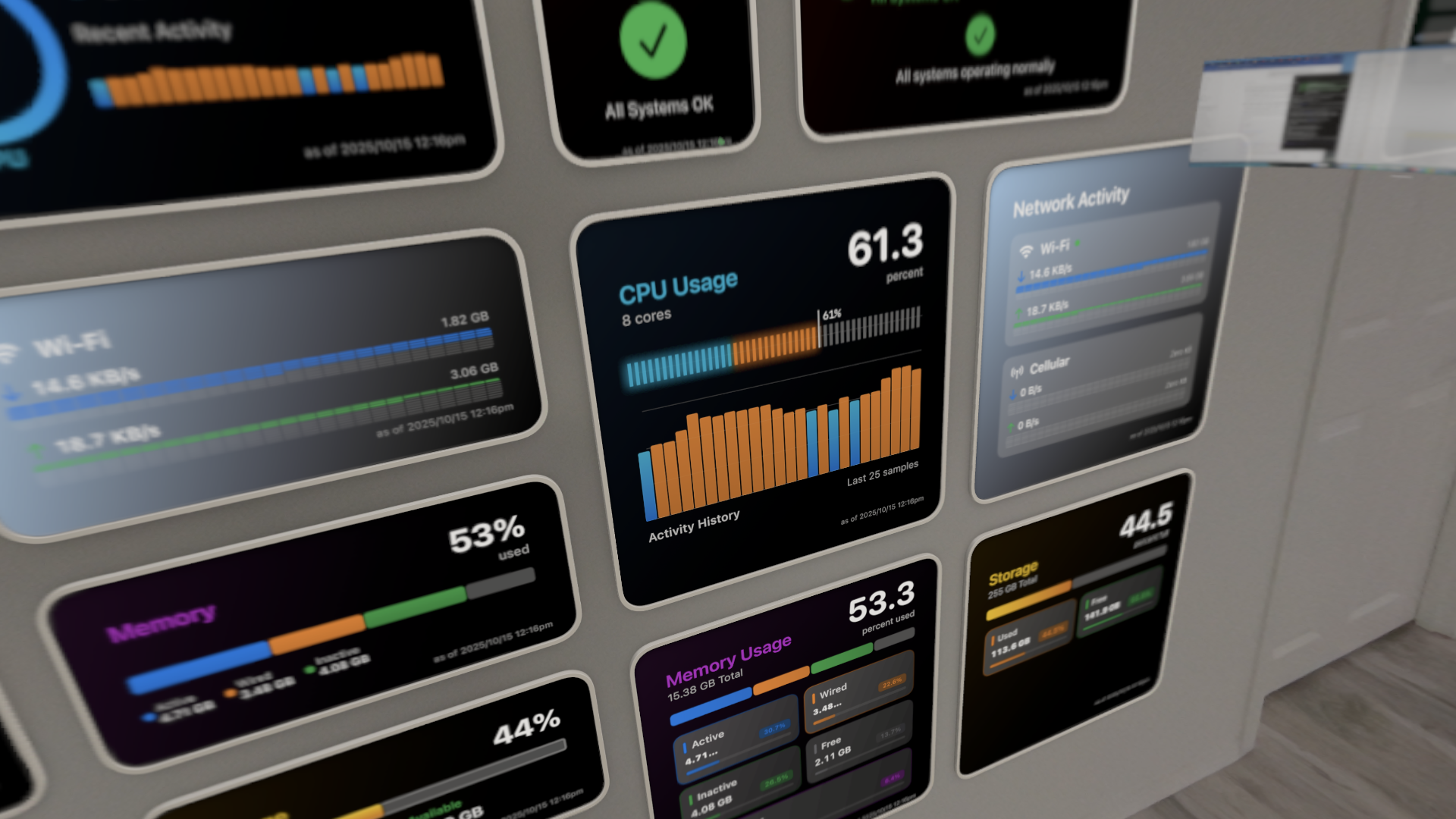

On visionOS, widgets can be placed in your space to create an always-on dashboard.

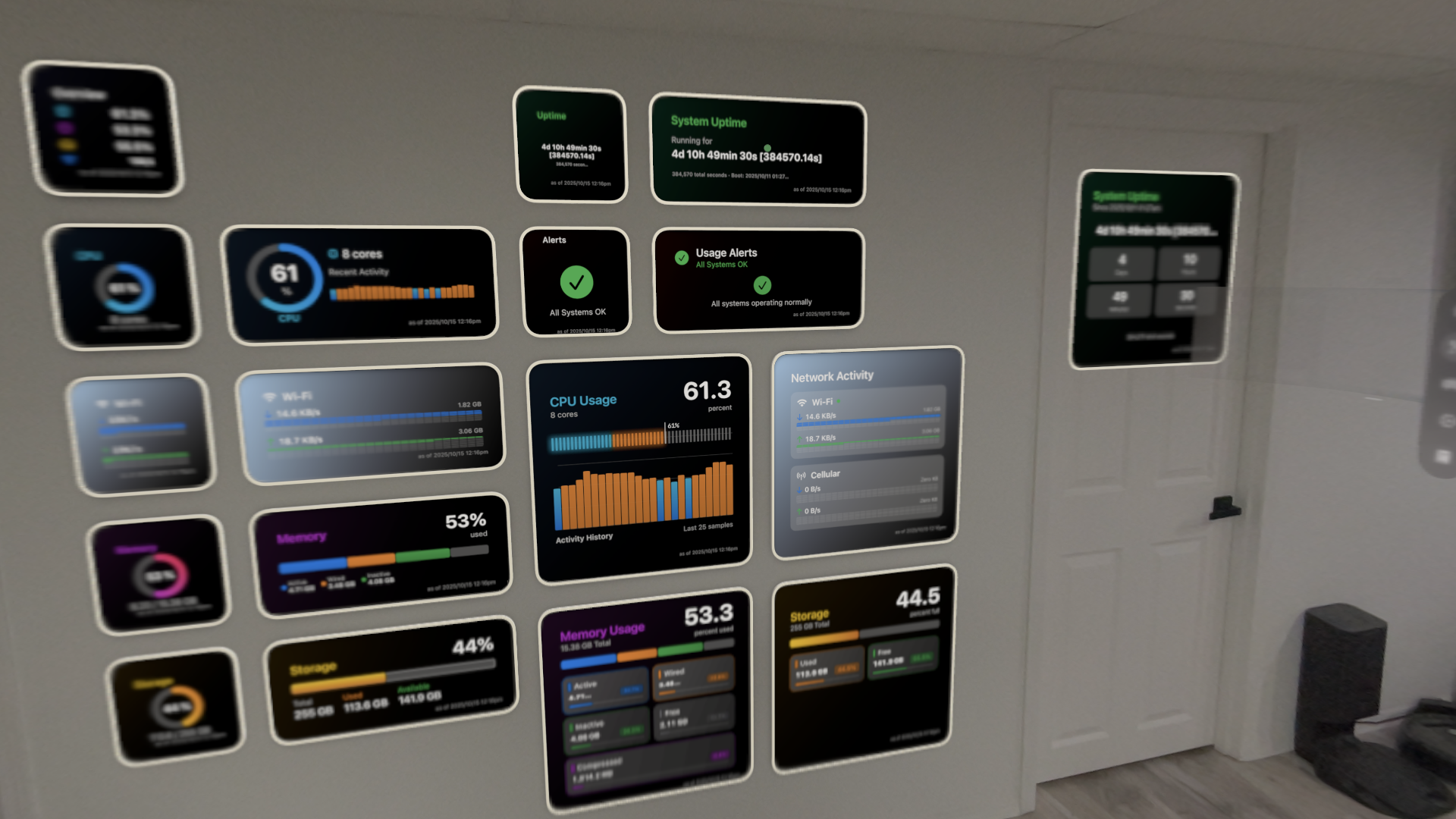

visionOS: place widgets in your space for at-a-glance monitoring.

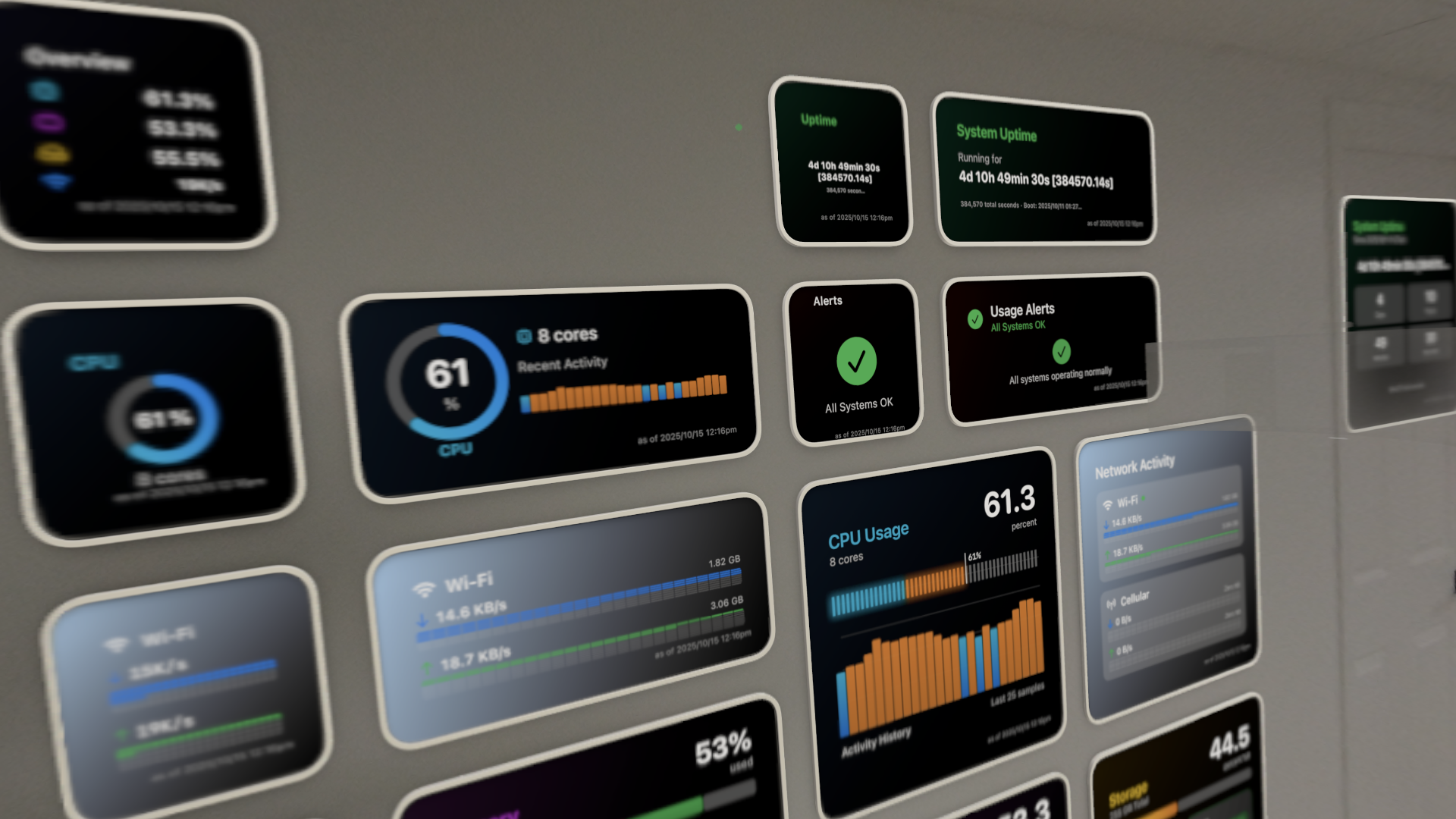

visionOS: widgets scale to different sizes and layouts.

visionOS: combine CPU, memory, storage, uptime, and alerts in one view.
